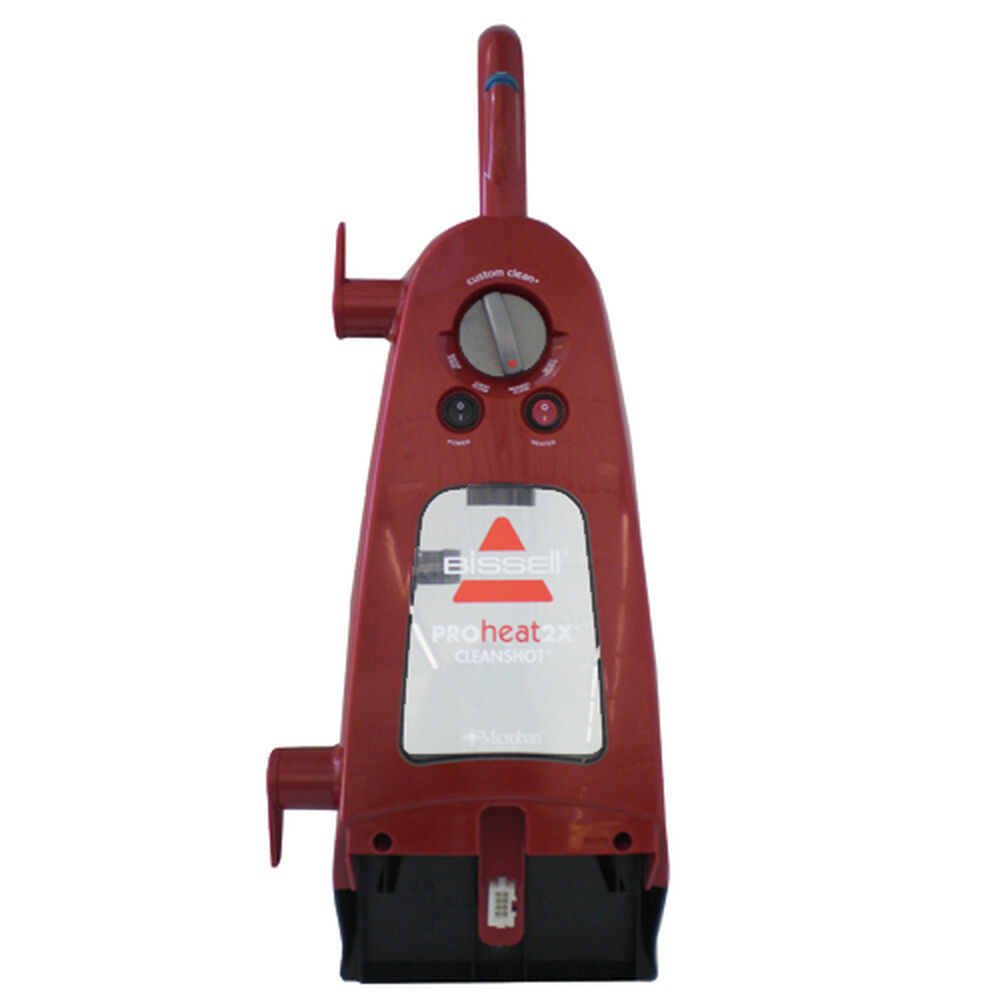

ProHeat 2X® Deep Cleaning System
Dual brushes and heating system for a clean you can see!
Model number: 9200A

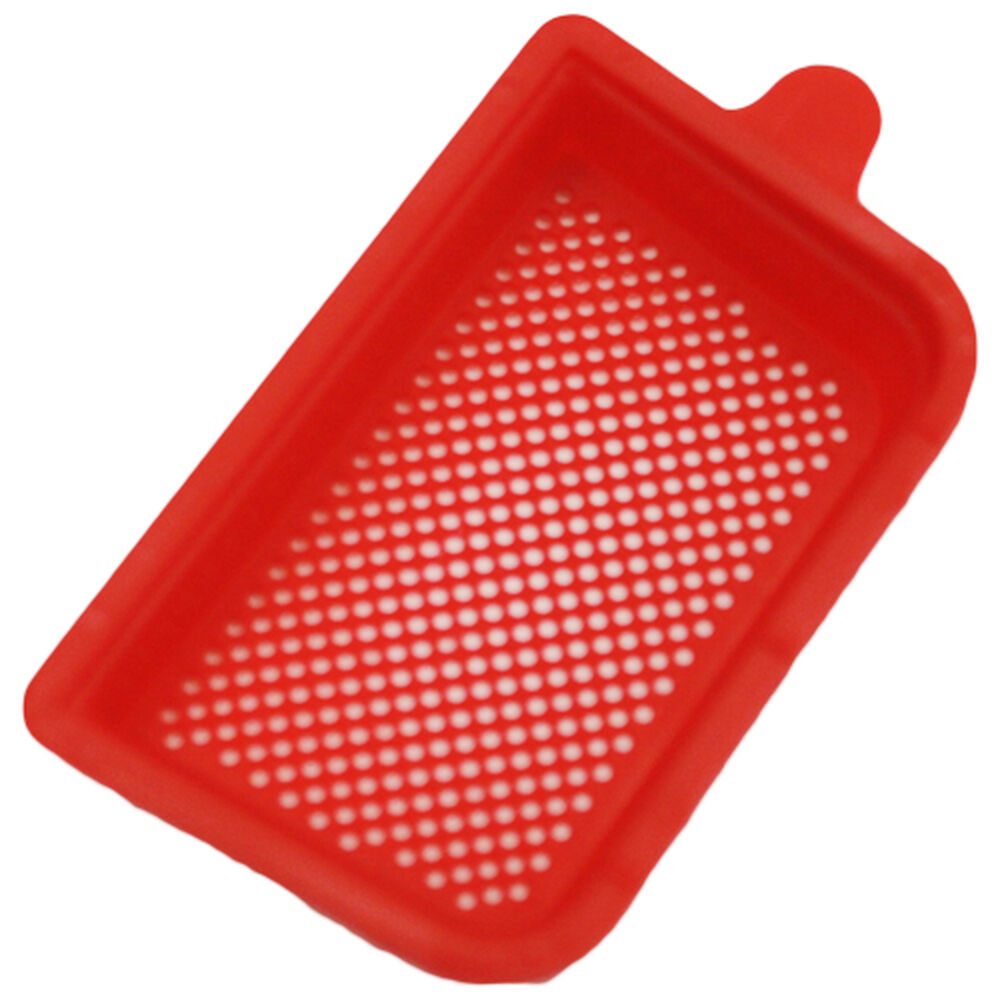

Filter ONLY
Only available through an authorized BISSELL service center:
Switch - On/Off
Switch - Heater
Custom Clean Dial
Microswitch - Trigger (Handle)
Screw Kit - Handle -(3) M4 x 18, (1) M4 x 13

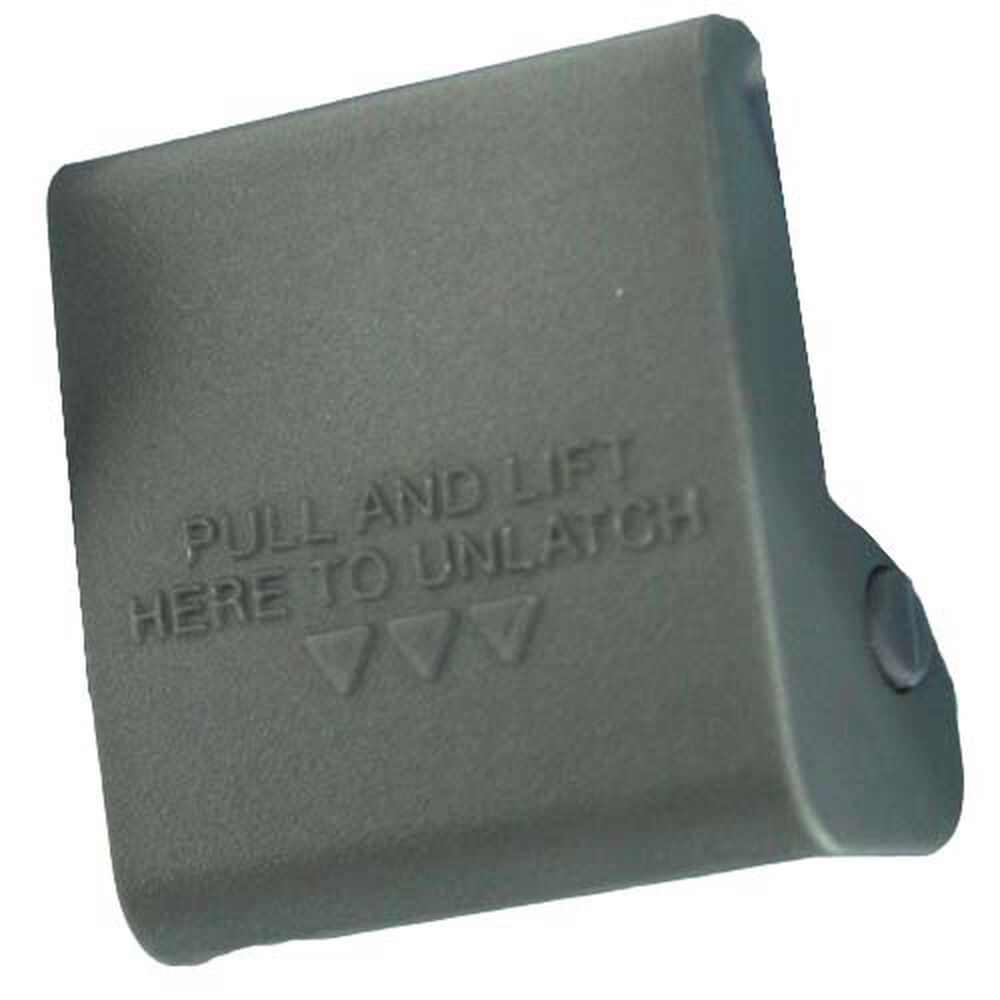

Hose Secure latch
Crevice Tool Holder - Black
Hose Assembly (Includes trigger and internal tubing)
Indicator Light (Includes wiring and light assembly)
Circuit Board
Recline Pedal
Wheel Kit - (2) Wheels, (2) Axles, (2) E-Rings
Solenoid Valve
Tubing Manifold - Manual Smartclean
Brush Motor Cover
Brush Motor
Pump Assembly (includes wiring, pump and casing)
Pump Cooling Duct (Cooling Fan)
Heater

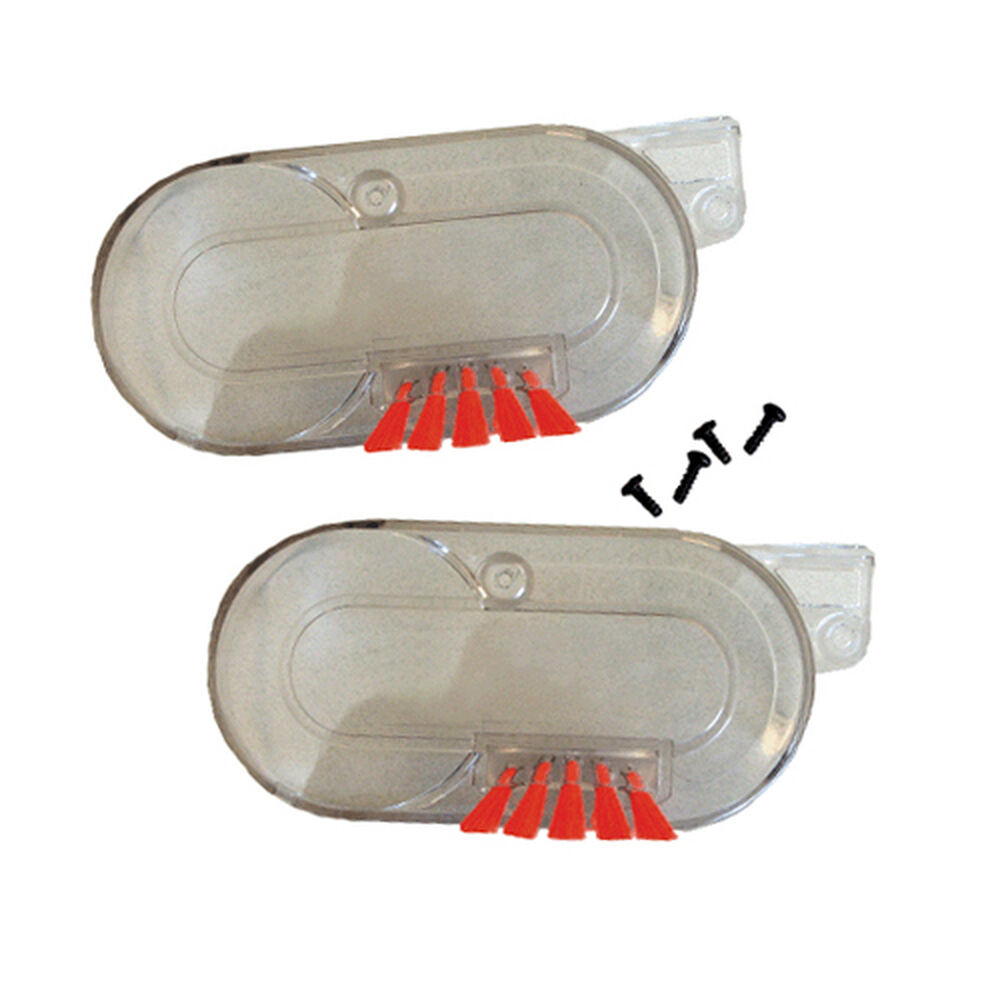

End Cap w/ Edge Brushes RT<
Gear, Washer, E-Ring - for Brush
Motor
Bridge Rectifier
Microswitch (to turn brush on/off)
Gasket - Short Air Duct - Upper
Short Air Duct
Gasket - Short Air Duct - Lower
Vacuum Motor
Gasket - Vacuum Motor
Gasket - Vacuum Motor - Lower
NLA Scotchgard Applicator Tool
Screw Kit - End Cap & Brush Arm: (1) M4 x 18, (1) M4 x 13, (1) M4 x 12
Screw Kit - Miscellaneous: (4) M4 x 18, (2) M4 x 13, (4) M4 x 12, (2) M3 x 18
Screw Kit - Handle (4) #8 x 3/4"
Internal Tubing
